Latex Table with multirow

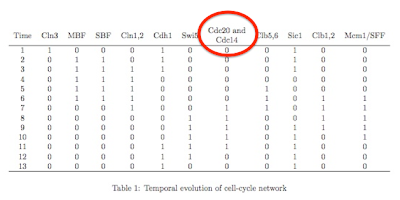

If you ever have to make a table, where you need multiple lines for one entry, this is one way to do it:

 \usepackage{multirow}

\begin{table}
\makebox[\textwidth][c]{
\begin{tabular}{ccccccc c cccc}
  \multirow{2}{*}{Time} & \multirow{2}{*}{Cln3} &
    \multirow{2}{*}{MBF} & \multirow{2}{*}{SBF} &
    \multirow{2}{*}{Cln1,2} & \multirow{2}{*}{Cdh1} &
    \multirow{2}{*}{Swi5} &
    Cdc20 and & % This is the part to be split
    \multirow{2}{*}{Clb5,6} & \multirow{2}{*}{Sic1} &
    \multirow{2}{*}{Clb1,2} & \multirow{2}{*}{Mcm1/SFF}\\
  &&&&&&& Cdc14 \\  % This is the second row
  \hline
  1&1&0&0&0&1&0&0&0&1&0&0\\
  2&0&1&1&0&1&0&0&0&1&0&0\\
  3&0&1&1&1&1&0&0&0&1&0&0\\
  4&0&1&1&1&0&0&0&0&0&0&0\\
  5&0&1&1&1&0&0&0&1&0&0&0\\
  6&0&1&1&1&0&0&0&1&0&1&1\\
  7&0&0&0&1&0&0&1&1&0&1&1\\
  8&0&0&0&0&0&1&1&0&0&1&1\\
  9&0&0&0&0&0&1&1&0&1&1&1\\
  10&0&0&0&0&0&1&1&0&1&0&1\\
  11&0&0&0&0&1&1&1&0&1&0&0\\
  12&0&0&0&0&1&1&0&0&1&0&0\\
  13&0&0&0&0&1&0&0&0&1&0&0\\
  \hline
\end{tabular}
}
\caption{Temporal evolution of cell-cycle network}
\label{table:timecourse}
\end{table}
